React Native-ExportComponentUI

React Native

Setup

1
2
3
react-native init CounterApp
cd CounterApp
react-native run-ios

App.js

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
import React from 'react';
import {
  StyleSheet,
  View,
  Text,
  TouchableOpacity,
} from 'react-native';


class App extends React.Component {
  constructor(props) {
    super(props);
    this.state = {
      count: 0
    };
  }

  increment = () => {
    this.setState({ count: this.state.count + 1 })
  }

  render() {
    return (
      <View style={styles.container}>
        <TouchableOpacity
          style={[styles.wrapper, styles.border]}
          onPress={this.increment}
        >
          <Text style={styles.button}>
            {this.state.count}
          </Text>
        </TouchableOpacity>
      </View>
    );
  }

}
const styles = StyleSheet.create({
  container: {
    flex: 1, alignItems: "stretch"
  },
  wrapper: {
    flex: 1, alignItems: "center", justifyContent: "center"
  },
  border: {
    borderColor: "#eee", borderBottomWidth: 1
  },
  button: {
    fontSize: 50, color: "orange"
  }
});

export default App;

How to expose a Swift UI Component to JS

建立一個 Swift ViewManager

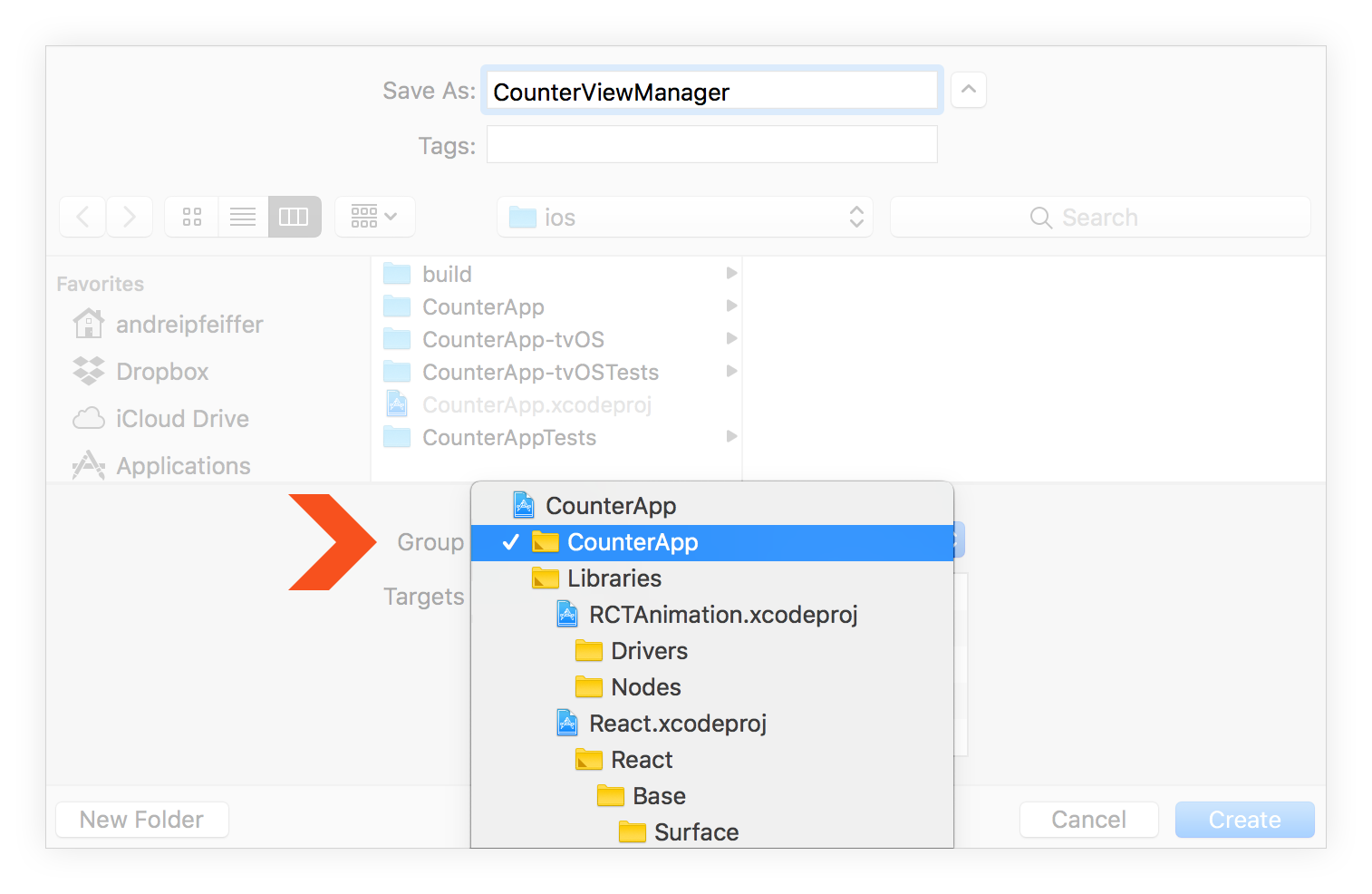

  • File → New → File… (or CMD+N)
  • Select Swift File
  • Name your file CounterViewManager
  • In the Group dropdown, make sure to select the group CounterApp, not the project itself.

!select CounterApp

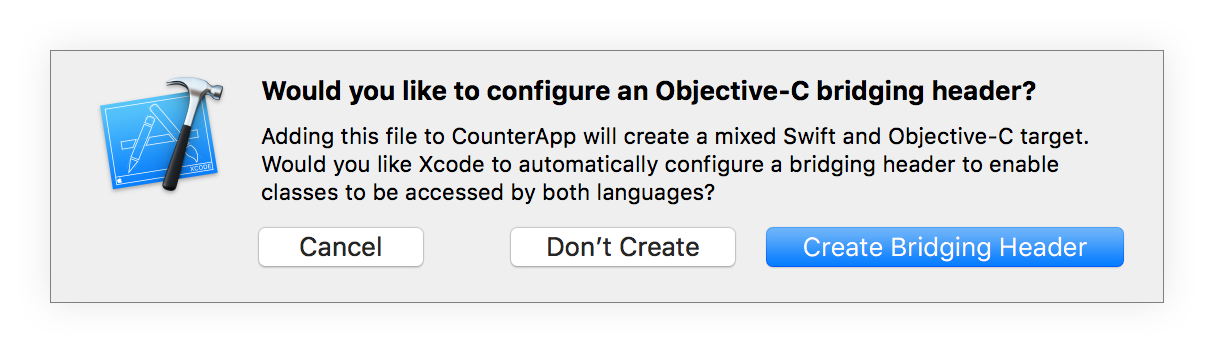

Configure the Objective-C Bridging Header

1
After you create the Swift file, you should be prompted to choose if you want to configure an Objective-C Bridging Header. Select “Create Bridging Header”.

configure Objective-C Bridging Header

如果您還沒有標題，請立即添加其中兩個標題

1
2
3
4
// CounterApp-Bridging-Header.h

#import "React/RCTBridgeModule.h"
#import "React/RCTViewManager.h"

CounterViewManager.swift

1
2
3
4
5
6
7
8
9
@objc(CounterViewManager)
class CounterViewManager: RCTViewManager {
  override func view() -> UIView! {
    let label = UILabel()
    label.text = "Swift Counter"
    label.textAlignment = .center
    return label
  }
}

新增一個 Obj-C 檔案

  • File → New → File… (or CMD+N)
  • Select Objective-C File
  • Name your file CounterViewManager

CounterViewManager.m

1
2
3
4
5

#import "React/RCTViewManager.h"

@interface RCT_EXTERN_MODULE(CounterViewManager, RCTViewManager)
@end

Access your Component from JS

現在你可以使用 requireNativeComponent 來使用

建立 swiftUI

CounterViewManager.swift

1
2
3
4
5
6
7
8
9
10
@objc(CounterViewManager)
class CounterViewManager: RCTViewManager {
  override static func requiresMainQueueSetup() -> Bool {
    return true
  }

  override func view() -> UIView! {
    return CounterView()
  }
}

CounterView.swift

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
import UIKit
class CounterView: UIView {
  @objc var count = 0 {
    didSet {
      button.setTitle(String(describing: count), for: .normal)
    }
  }
  override init(frame: CGRect) {
    super.init(frame: frame)
    self.addSubview(button)
    increment()
  }
  required init?(coder aDecoder: NSCoder) {
    fatalError("init(coder:) has not been implemented")
  }
  lazy var button: UIButton = {
    let b = UIButton.init(type: UIButton.ButtonType.system)
    b.titleLabel?.font = UIFont.systemFont(ofSize: 50)
    b.autoresizingMask = [.flexibleWidth, .flexibleHeight]
    b.addTarget(
      self,
      action: #selector(increment),
      for: .touchUpInside
    )
    return b
  }()
  @objc func increment() {
    count += 1
  }
}

How to send props to a Swift Component

可以透過 RCT_EXPORT_VIEW_PROPERTY 來 export props

在這個範例中 將 count export

CounterViewManager.m

1
2
3
4
5
#import "React/RCTViewManager.h"

@interface RCT_EXTERN_MODULE(CounterViewManager, RCTViewManager)
  RCT_EXPORT_VIEW_PROPERTY(count, NSNumber)
@end

Important: you have to use Obj-C types for variables exposed to React Native

CounterView.swift

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
import UIKit
class CounterView: UIView {
   @objc var count: NSNumber = 0 {
    didSet {
      button.setTitle(String(describing: count), for: .normal)
    }
  }
  override init(frame: CGRect) {
    super.init(frame: frame)
    self.addSubview(button)
    increment()
  }
  required init?(coder aDecoder: NSCoder) {
    fatalError("init(coder:) has not been implemented")
  }
  lazy var button: UIButton = {
    let b = UIButton.init(type: UIButton.ButtonType.system)
    b.titleLabel?.font = UIFont.systemFont(ofSize: 50)
    b.autoresizingMask = [.flexibleWidth, .flexibleHeight]
    b.addTarget(
      self,
      action: #selector(increment),
      for: .touchUpInside
    )
    return b
  }()
  @objc func increment() {
    count = count.intValue + 1 as NSNumber
  }
}

App.js

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58

import React from 'react';
import {
  StyleSheet,
  View,
  Text,
  TouchableOpacity,
  requireNativeComponent,
} from 'react-native';

const CounterView = requireNativeComponent("CounterView");

class App extends React.Component {
  constructor(props) {
    super(props);
    this.state = {
      count: 0
    };
  }

  increment = () => {
    this.setState({ count: this.state.count + 1 })
  }

  render() {
    return (
      <View style={styles.container}>
        <TouchableOpacity
          style={[styles.wrapper, styles.border]}
          onPress={this.increment}
        >
          <Text style={styles.button}>
            {this.state.count}
          </Text>
        </TouchableOpacity>

        <CounterView style={ styles.wrapper } count={2} />
      </View>
    );
  }

}
const styles = StyleSheet.create({
  container: {
    flex: 1, alignItems: "stretch"
  },
  wrapper: {
    flex: 1, alignItems: "center", justifyContent: "center"
  },
  border: {
    borderColor: "#eee", borderBottomWidth: 1
  },
  button: {
    fontSize: 50, color: "orange"
  }
});

export default App;

Expose a Component Event Emitter

接下來使用一個 function 來讓 native 使用

CounterView.swift

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
import UIKit
class CounterView: UIView {

   @objc var onUpdate: RCTDirectEventBlock?

   @objc var count: NSNumber = 0 {
    didSet {
      button.setTitle(String(describing: count), for: .normal)
    }
  }
  override init(frame: CGRect) {
    super.init(frame: frame)
    self.addSubview(button)
    increment()
  }
  required init?(coder aDecoder: NSCoder) {
    fatalError("init(coder:) has not been implemented")
  }

  lazy var button: UIButton = {
    let b = UIButton.init(type: UIButton.ButtonType.system)
    b.titleLabel?.font = UIFont.systemFont(ofSize: 50)
    b.autoresizingMask = [.flexibleWidth, .flexibleHeight]
    b.addTarget(
      self,
      action: #selector(increment),
      for: .touchUpInside
    )

    let longPress = UILongPressGestureRecognizer(
      target: self,
      action: #selector(sendUpdate(_:))
    )
    b.addGestureRecognizer(longPress)

    return b
  }()

  @objc func sendUpdate(_ gesture: UILongPressGestureRecognizer) {
    if gesture.state == .began {
      if onUpdate != nil {
        onUpdate!(["count": count])
      }
    }
  }

  @objc func increment() {
    count = count.intValue + 1 as NSNumber
  }
}

If you have to send any data to a RCTDirectEventBlock method, you must return a [AnyHashable:Any] structure. This means that you can’t pass a String or Int directly, you have to put them in a Dictionary.

CounterViewManager.m

1
2
3
4
5
6
#import "React/RCTViewManager.h"

@interface RCT_EXTERN_MODULE(CounterViewManager, RCTViewManager)
  RCT_EXPORT_VIEW_PROPERTY(count, NSNumber)
  RCT_EXPORT_VIEW_PROPERTY(onUpdate, RCTDirectEventBlock)
@end

在 header 也要增加一行

Expose methods on the ViewManager

CounterApp-Bridging-Header.h

1
2
3
4
#import "React/RCTBridgeModule.h"
#import "React/RCTViewManager.h"
#import "React/RCTEventEmitter.h"
#import "React/RCTUIManager.h"

CounterViewManager.swift

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
@objc(CounterViewManager)
class CounterViewManager: RCTViewManager {
  override static func requiresMainQueueSetup() -> Bool {
    return true
  }

  override func view() -> UIView! {
    return CounterView()
  }

    @objc func updateFromManager(_ node: NSNumber, count: NSNumber) {

      DispatchQueue.main.async {                                // 2
        let component = self.bridge.uiManager.view(             // 3
          forReactTag: node                                     // 4
        ) as! CounterView                                       // 5
        component.update(value: count)                          // 6
      }
    }
}

CounterView.swift

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
import UIKit

class CounterView: UIView {

   @objc var onUpdate: RCTDirectEventBlock?

   @objc var count: NSNumber = 0 {
    didSet {
      button.setTitle(String(describing: count), for: .normal)
    }
  }
  override init(frame: CGRect) {
    super.init(frame: frame)
    self.addSubview(button)
    increment()
  }

  static func requiresMainQueueSetup() -> Bool {
    return true
  }

  required init?(coder aDecoder: NSCoder) {
    fatalError("init(coder:) has not been implemented")
  }

  lazy var button: UIButton = {
    let b = UIButton.init(type: UIButton.ButtonType.system)
    b.titleLabel?.font = UIFont.systemFont(ofSize: 50)
    b.autoresizingMask = [.flexibleWidth, .flexibleHeight]
    b.addTarget(
      self,
      action: #selector(increment),
      for: .touchUpInside
    )

    let longPress = UILongPressGestureRecognizer(
      target: self,
      action: #selector(sendUpdate(_:))
    )
    b.addGestureRecognizer(longPress)

    return b
  }()

  @objc func update(value: NSNumber) {
      count = value
  }

  @objc func sendUpdate(_ gesture: UILongPressGestureRecognizer) {
    if gesture.state == .began {
      if onUpdate != nil {
        onUpdate!(["count": count])
      }
    }
  }

  @objc func increment() {
    count = count.intValue + 1 as NSNumber
  }
}

App.js

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
/**
 * Sample React Native App
 * https://github.com/facebook/react-native
 *
 * @format
 * @flow
 */

import React from 'react';
import {
  StyleSheet,
  View,
  Text,
  UIManager,
  TouchableOpacity,
  requireNativeComponent,
} from 'react-native';

const CounterView = requireNativeComponent("CounterView");

class App extends React.Component {
  constructor(props) {
    super(props);
    this.state = {
      count: 0
    };
  }

  increment = () => {
    this.setState({ count: this.state.count + 1 })
  }
  update = e => {
    this.setState({
      count: e.nativeEvent.count
    })
  }

  _onUpdate = event => {
    if (this.props.onUpdate) {
      this.props.onUpdate(event.nativeEvent);
    }
  };

  updateNative = () => {
    UIManager.dispatchViewManagerCommand(
      findNodeHandle(this.counterRef),                     // 1
      UIManager["CounterView"].Commands.updateFromManager, // 2
      [this.state.count]                                   // 3
    );
  }

  render() {
    return (
      <View style={styles.container}>
        <TouchableOpacity
          style={[styles.wrapper, styles.border]}
          onPress={this.increment}
        >
          <Text style={styles.button}>
            {this.state.count}
          </Text>
        </TouchableOpacity>

        <CounterView
          style={ styles.wrapper }
          count={this.state.count}
          onUpdate={this._onUpdate}
          ref={ref => this.ref = ref}
        />
      </View>
    );
  }

}
const styles = StyleSheet.create({
  container: {
    flex: 1, alignItems: "stretch"
  },
  wrapper: {
    flex: 1, alignItems: "center", justifyContent: "center"
  },
  border: {
    borderColor: "#eee", borderBottomWidth: 1
  },
  button: {
    fontSize: 50, color: "orange"
  }
});

export default App;

參考文章

Swift in React Native

本文标题:React Native-ExportComponentUI

文章作者:

发布时间:2019-12-06, 17:13:39

最后更新:2024-07-26, 00:40:45

原始链接:https://horsekitlin.github.io/2019/12/06/ReactNative-ExportComponentUI/

许可协议: "署名-非商用-相同方式共享 4.0" 转载请保留原文链接及作者。

文章目录
  1. 1. Setup
  2. 2. How to expose a Swift UI Component to JS
    1. 2.1. 建立一個 Swift ViewManager
      1. 2.1.1. Configure the Objective-C Bridging Header
    2. 2.2. 新增一個 Obj-C 檔案
    3. 2.3. Access your Component from JS
    4. 2.4. 建立 swiftUI
    5. 2.5. How to send props to a Swift Component
    6. 2.6. Expose a Component Event Emitter
    7. 2.7. Expose methods on the ViewManager
  3. 3. 參考文章
|
